10Gb/s Tunable DWDM SFP+ 80km Transceiver

PRODUCT DESCRIPTION
The 10 Gb/s SFP+ tunable transceiver is an integrated ?ber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.3 Gb/s. The module complies with the 10 Gigabit Enhanced Small Form Factor Pluggable （SFP+）multisource agreement-MSA（SFF-8431） and SFF-8432，SFF-8690，SFF 8472. It complies with the ITU-T G.698.1 standard with 50 GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80 km reach (Ethernet), and DWDM 10GFC for 80 km reach (Fiber Channel) applications.
The transceiver integrates the receiver and transmitter path on one module. The transceiver contain a C-band-tunable integrated Mach-Zehnder (MZ) laser, enabling data transmission over single-mode ?ber through an industry-standard LC connector. On the receiver side, the 10 Gbps data stream is recovered from an APD/ trans-impedance ampli?er, and passed to an output driver. This module features a hot-pluggable electrical interface.

PRODUCT FEATURES
● Supports 9.95Gb/s to 11.3Gb/s bit rates
● Monolithically integrated full C-band tunable transmitter and APD receiver
● 50 GHz ITU channel spacing with integrated wavelength locker
● Maximum link length of 80km
● Metal enclosure, for lower EMI
● 2-wire interface with integrated Digital Diagnostic monitoring
● Hot-pluggable SFP+ footprint
● Specifications compliant with SFF-8472 V11.3& SFF-8690 V1.4
● Compliant with SFP+ MSA with LC connector
● Power dissipation <1.65W
● Case temperature range:
       Standard : -5 to +70°C
       Industrial : -40 to +85°C

APPLICATIONS
● DWDM 10GBASE-ZR/ZW 10G Ethernet
● DWDM 80KM 10G Fiber Channel
● DWDM SONET OC-192&SDH STM-64

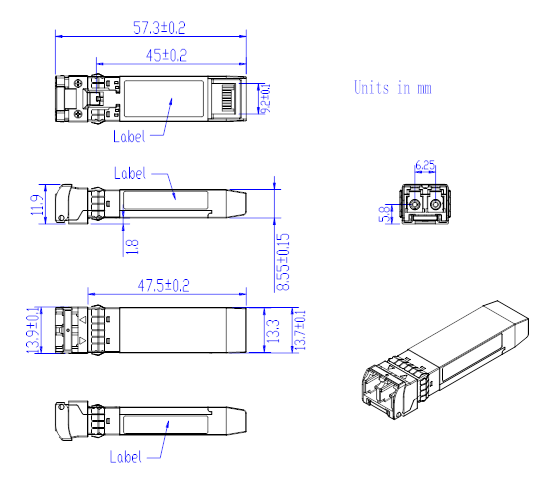

Mechanical Specifications

Ordering information

FTCS-TD1X-80xx Wavelength Guide Table

Note：

1. When a tunable module is plugged in for the first time, it will go to a default channel,FTCS-TD1X-80xx default channel is 1568.36nm, compatible with channel range from 1 to 99
2. When the module is power cycled it will automatically go to the last channel selected, or when Tx_Disable asserted and then re-enabled, the module returns to the last channel selected.
