复用器

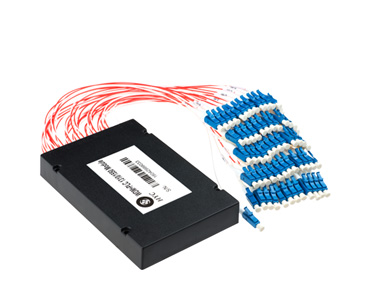

PLC+WDM？
Description
产品先容:
乐天堂的PLC+WDM？槭且恢只谄矫娌ǖ际忠蘸蚑FF(薄膜滤波器)波分复用手艺,具备多种封装尺寸和多种通道数目可选;PLC+WDM？榧蒔LC、WDM两种类型产品串接使用, 它支持1*N方法的多通道CATV信号传输,且知足每个通道的自力IP信号上下行传输;能知足数据、语音、CATV等综合营业的高宽带需求,普遍应用与三网合一、FT
产品特征:
● 低插入消耗
较低的插入消耗,使PLC+WDM？樵擞檬庇涤薪系偷男藕潘ゼ,从而降低对信号发射器的功率要求。
● 高隔离度
较高的隔离度值,使PLC+WDM？槟诶锒嘈藕糯涫钡贾麓湫藕攀д。举行充分的信号隔离,有用避免信号之间相互串扰导致传输信号失真。
● 成熟生产工艺
乐天堂的PLC+WDM？榫哂谐墒斓纳ひ,性能稳固可靠,支持-40℃~+85℃的卑劣情形下事情,包管信号的稳固传输。
● 多种通道数可选
乐天堂的PLC+WDM可提供1*8、1*16、1*32等多种通道选择均搭配上&下行的IP信号自力端口。
● 切合国际标准
乐天堂的PLC+WDM？榍泻蟁oHS与UL94-V1,知足TelcordiaGR-1209与GR-1221。
● 装置利便、标识清晰
乐天堂的PLC+WDM？楹杏凶源淖爸每孜,利便装置;？槊扛龀鱿硕丝诰型ǖ辣晔,利便用户识别。
产品规格:
| 参数 | 单位 | PLC+WDM？ | |
| 事情波长 | nm | 1260~1670nm | |
| IP信号波长 | nm | 1260-1360(upstream) | 1480-1500(downstream) |
| CATV信号波长 | nm | 1540~1560 | |
| 插入插损 | dB | ≤1.5(for IP) | ≤18.5(for CATV) |
| 隔离度 | dB | ≥30(@ IP) | ≥15(@ CATV) |
| 回波消耗 | dB | ≥45 | |
| 偏向性 | dB | ≥50 | |
| 纹波消耗 | dB | ≤0.5 | |
| 封装尺寸 | mm | L120xW80xH18 | |
| 事情温度 | ℃ | -40~+85 | |
| ? 毗连器类型 | LC/UPC(或客户指定) | ||
